HP ProLiant ML110 Generation 9 (Gen9)

Overview

The HP ProLiant ML110 Gen9 Server is a 1P/ 4.5U affordable single-socket tower server featuring better performance, expansion, and growth than previous 1P single-socket tower models. Designed to meet small and midsized businesses’ performance compute demands the ML110 Gen9 delivers exceptional value at an affordable price.
HP-ProLiant-ML110-Generation-9-(Gen9)

Front view details for 8LFF and 16SFF

1. Drive cage
2. Drive cage
3. Optical drive (optional)
4. Power button/LED
5. Health LED
6. NIC status LED
7. USB 3.0 (2) connectors

Rear View

1. PCIe3 Slots (Slots 1-5)
2. USB 2.0 (2) connectors
3. USB 3.0 (2) connectors
4. Video connector
5. UID button/LED
6. Power supply 2 LED
7. Power supply 2 power connection
8. Power supply 1 LED
9. Power supply 1 power connection
10. Power Supply 1 bay
11. Power Supply 2 bay
12. Network RJ-45 ports (2)
13. HP ML Gen9 dedicated iLO port kit (optional)
HP-ProLiant-ML110-Generation-9-(Gen9)

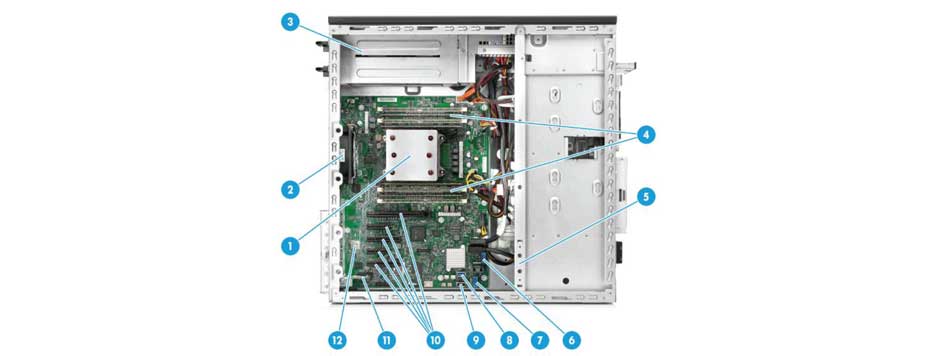

Interior View

1. One (1) processor and heatsink with HP Smart Socket Guide
2. System Fan (92x32mm default), upgrade system fan(92x38mm) is required for 140W E5-1600v3 Processor and SAS SSD
3. Power Supply backplane cage
4. Eight (8) DDR4 DIMM slots
5. PCIe fan (option required to support PCIe expansion  cards)
6. Front USB 3.0 connector
7. SATA connector 1
8. Internal USB 3.0 connector
9. Internal USB 2.0 connector
10. Five (5) PCIe3 expansion slots
11. Dedicated iLO module slot (optional)
12. MicroSD slot

Standard Features

Processor

Model CPU frequency Cores L3 Cache Power QPI DDR4 Hz
E5-2660v3 2.6GHz 10 25MB 105W 9.6GT/s 2133
E5-2640v3 2.6GHz 8 20MB
90W 8.0GT/s 1866
E5-2630Lv3 1.8GHz 8
20MB
55W 8.0GT/s 1866
E5-2623v3 3.0GHz 4
10MB
105W 8.0GT/s 1866
E5-2620v3 2.4GHz 6
15MB
85W 8.0GT/s 1866
E5-2609v3 1.9GHz 6
15MB
85W 6.0GT/s 1600
E5-2603v3 1.6GHz 6
15MB
85W 6.0GT/s 1600
E5-1650v3 3.5GHz 6
15MB
140W 0.0GT/s 2133
E5-16207v3 3.5GHz 4
10MB
140W 0.0GT/s 2133
E5-1603v3 2.8GHz 4 10MB
140W 0.0GT/s 1866

NOTE: Up to 1 processor supported. Mixing different processor models is not supported.

Chipset

Intel® C610 Series Chipset
Intel® E5-2600v3 Processor Family
Intel® E5-1600v3 Processor
NOTE: This is a 140W processor which need to order with the ML110 Gen9 System fan upgrade kit - 789654B21.

Upgradeability

Up to 16 SFF Hard Drive Bays, Or 8 LFF Hard Drive Bays
Up to 8 DIMM slots
Redundant Power Supply
Optional optical drive (up to 1)

On System Management Processor

HP iLO (Firmware HP iLO4 2.1) 2GB NAND
NOTE: 1GB USB user space configurable via UEFI and accessible via iLO. Read and learn more in the iLO QuickSpecs.

Memory

Type

HP SmartMemory

DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

DIMM Slots Available 8 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)
Maximum Capacity (LRDIMM) 128GB (8 x 16GB LRDIMM @2133MHz)
Maximum Capacity (RDIMM) 256GB (8 x 32GB RDIMM @2133MHz)

NOTE: This server does not support mixing LRDIMMs or RDIMMs. Attempting to mix any combination of these DIMMs can cause the server to halt during BIOS installation.

Network Controller

 Broadcom 5717C0 Dual-port 1Gb

Maximum Internal
Storage


CAPACITY
CONFIGURATION
Hot Plug LFF SAS 48TB 8x6TB
Hot Plug LFF SATA 48TB 8x6TB
Hot Plug SFF SAS 19.2TB 16x1.2TB
Hot Plug SFF SATA 16TB 16x1TB
Non Hot Plug LFF SATA 24TB 8x3TB
Hot Plug LFF SAS SSD 12.8TB 8x1.6TB
Hot Plug LFF SATA SSD 12.8TB 8x1.6TB
Hot Plug SFF SAS SSD 25.6TB 16x1.6TB
Hot Plug SFF SATA SSD 25.6TB 16x1.6TB
