HPE Proliant DL360 G9

HPE ProLiant DL360 Generation 9 (Gen9)

Overview
The Hewlett Packard Enterprise leading server for dense general-purpose computing, the HPE ProLiant DL360 Gen9 Server delivers increased performance with the best memory and I/O expandability packed in a 1U dense rack design. Reliability, serviceability and always on availability, backed by a comprehensive warranty, make it ideal for the most space constrained server workloads.

HPE_ProLiant_DL360_Generation9_(Gen9)

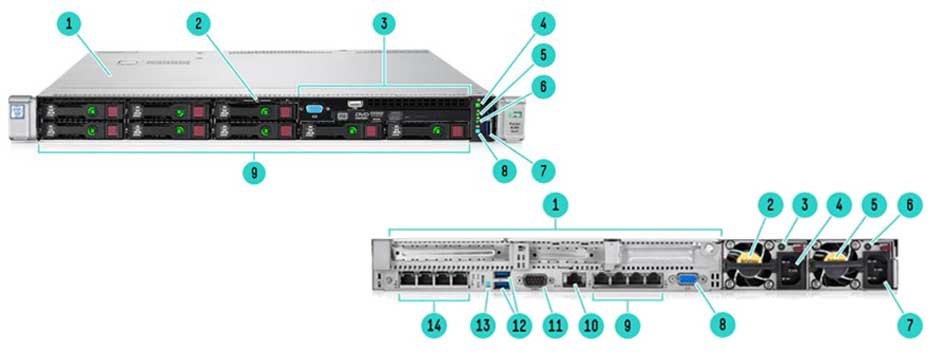

Front View

1 Access Panel
2 Serial Label Pull Tab
3 HPE Universal Media Bay or NVMe
NOTE: Shown w/VGA, USB 2.0 and DVD-ROM or DVD-RW option. Alternative options 2 SFF  HDDs or VGA and USB 2.0.
4 Power On/Standby button and system power LED  button
5 Health LED
6 NIC Status LED
7 USB 3.0 Connector
8 Unit Identification Button & LED
9 SAS/SATA/SSD/NVMe Drive Bays
NOTE: 8SFF Model shown. 8SFF can be configured as 8 SAS/SATA Drives, 4 SAS/SATA  (Drives 1-4) + 6 NVMe (Drives 5-10), 8 SAS/SATA + Universal Media Bay or 10 SAS/SATA drives. 4 LFF Models are also available.

Rear View

1 PCIe 3.0 Slots 1-3
NOTE: Slot 1 and 2 Riser Ships Standard, Slot 3 Optional 1 FH /¾ length and two Low Profile slots available (shown) or two FH/ ¾ length slots.
2 HPE Flexible Slot Power Supply Bay 2
3 Power Supply 2 Status LED
4 Power Supply 2 C13 Connection
5 HPE Flexible Slot Power Supply Bay 1
6 Power Supply 1 Status LED
7 Power Supply  1 C13 Connection
8 Video Connector
9 Embedded 4x1GbE Network Adapter
10 Dedicated iLO 4 connector
11 Serial Port Connector (Optional)
12 USB 3.0 Connectors (2)
13 Unit Identification LED
14 FlexibleLOM bay (Optional)
NOTE: Shown: 4x1Gbe.

HPE_ProLiant_DL360_Generation9_(Gen9)

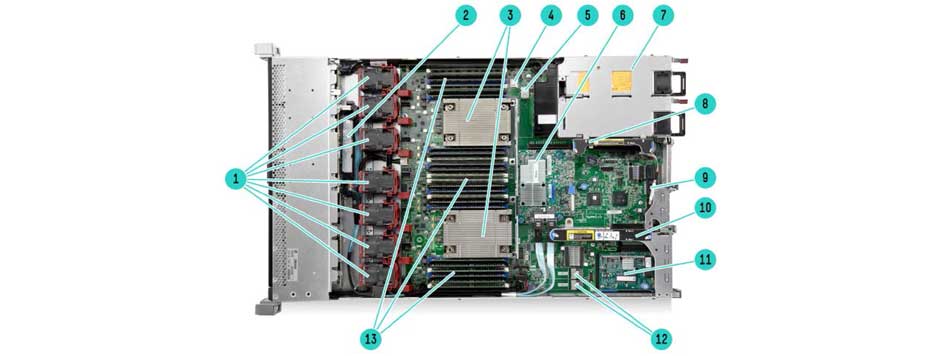

Internal View

1 5 Standard Fans Ship for 1P and 7 Standard Fans Ship for 2P
NOTE: High Performance Fans also available as an option.
2 HPE Smart Storage Battery (Optional)
3 2 Processors with HPE Smart Socket Guide
4 MicroSD card slot
NOTE: Optional Dual Micro-SD option.
5 Dual Internal USB 3.0 connector
6 HPE Flexible Smart Array or Smart HBA (Optional)
NOTE:H240ar shown and P440ar available.
7 2 HPE Flexible Slot Power supplies
NOTE: Optional Micro UPS option.
8 Secondary PCIe 3.0 riser for PCIe slot 3 (requires  CPU 2)
9 Embedded 4x1Gbe NIC
10 Primary PCIe 3.0 riser for PCIe slots 1 & 2
11 FlexibleLOM Bay (Optional)
12 Embedded SATA Controller ports
13 24 DDR4 DIMM slots (12 per processor)

Standard Features

Processor
Model CPU frequency Cores L3 Cache Power QPI DDR4 Hz
E5-2699v3
 2.3GHz 18 45MB
145W 9.6GT/s 2133
E5-2698v3
 2.3GHz 16 40MB 135W 9.6GT/s 2133
E5-2697v3
2.6GHz
14
 35MB 145W 9.6GT/s 2133
E5-2695v3
2.3GHz
14
 35MB 120W
 9.6GT/s 2133
E5-2690v3
2.6GHz
12
 30MB 135W
 9.6GT/s 2133
E5-2687Wv3
 3.1GHz
10
 25MB 160W
 9.6GT/s 2133
E5-2683v3
2.0GHz
14
 35MB 120W
 9.6GT/s 2133
E5-2680v3
2.5GHz
12
 30MB 120W
 9.6GT/s 2133
E5-2670v3
2.3GHz 12
 30MB 120W
 9.6GT/s 2133
E5-2667v3
3.2GHz 8
 20MB 135W
 9.6GT/s 2133
E5-2660v3 2.6GHz 10 25MB 105W 9.6GT/s 2133
E5-2650v3 2.3GHz 10 25MB 105W 9.6GT/s 2133
E5-2650Lv3 1.8GHz 12 30MB 65W 9.6GT/s 2133
E5-2643v3 3.4GHz 6 20MB 135W 9.6GT/s 2133
E5-2640v3 2.6GHz 8 20MB 90W 8.0GT/s 1866
E5-2637v3 3.5GHz 4 15MB 135W 9.6GT/s 2133
E5-2630v3 2.4GHz 8 20MB 85W 8.0GT/s 1866
E5-2630Lv3 1.8GHz 8 20MB 55W 8.0GT/s 1866
E5-2623v3 3.0GHz 4 10MB 105W 8.0GT/s 1866
E5-2620v3 2.4GHz 6 15MB 85W 8.0GT/s 1866
E5-2609v3 1.9GHz 6 15MB 85W 6.4GT/s 1600
E5-2603v3 1.6GHz 6 15MB 85W 6.4GT/s 1600
E5-2699v4 2.2GHz 22 55MB 145W 9.6GT/s 2400
E5-2698v4 2.2GHz 20 50MB 135W 9.6GT/s 2400
E5-2697v4 2.3GHz 18 45MB 145W 9.6GT/s 2400
E5-2697Av4 2.6GHz 16 40MB 145W 9.6GT/s 2400
E5-2695v4 2.1GHz 18 45MB 120W 9.6GT/s 2400
E5-2690v4 2.6GHz 14 35MB 135W 9.6GT/s 2400
E5-2687Wv4 3.0GHz 12 30MB 160W 9.6GT/s 2400
E5-2683v4 2.1GHz 16 40MB 120W 9.6GT/s 2400
E5-2680v4 2.4GHz 14 35MB 120W 9.6GT/s 2400
E5-2667v4 3.2GHz 8 25MB 135W 9.6GT/s 2400
E5-2660v4 2.0GHz 14 35MB 105W 9.6GT/s 2400
E5-2650v4 2.2GHz 12 30MB 105W 9.6GT/s 2400
E5-2650Lv4 1.7GHz 14 35MB 65W 9.6GT/s 2400
E5-2643v4 3.4GHz 6 20MB 135W 9.6GT/s 2400
E5-2640v4 2.4GHz 10 25MB 90W 8.0GT/s 2133
E5-2637v4 3.5GHz 4 15MB 135W 9.6GT/s 2400
E5-2630v4 2.2GHz 10 25MB 85W 8.0GT/s 2133
E5-2630Lv4 1.8GHz 10 25MB 55W 8.0GT/s 2133
E5-2623v4 2.6GHz 4 10MB 85W 8.0GT/s 2133
E5-2620v4 2.1GHz 8 20MB 85W 8.0GT/s 2133
E5-2609v4 1.7GHz 8 20MB 85W 6.4GT/s 1866
E5-2603v4 1.7GHz 6 15MB 85W 6.4GT/s 1866

Chipset

 Intel® C610 Series Chipset
Intel® E5-2600v3 Processor Family
Intel® E5-2600v4 Processor Family

Upgradeability

Upgradeable to four (4) processors
Up to 96 DDR4 DIMM slots
Nine (9) PCIe Gen3 expansion slots
NOTE: PCIe slot availability is dependent on the number of processors installed. Please refer to the "Expansion Slots" section for more details.
Ten (10) SFF internal HDD/SSD SAS drive bays or Five (5) SFF Internal Express Bays + Five (5) SFF
Internal HDD/SSD drive bays
NOTE: Five drive bays come standard. An optional five SAS drive or five Express backplane kit with five drive bays can be ordered for ten drives.
Five NVMe SSD drive bay
Four (4) redundant hot-plug power supplies

On System Management Processor

 HPE iLO (Firmware HPE iLO4 2.0 or later), 4GB NAND

Memory

Type

HPE SmartMemory
DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)
DIMM Slots Available 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs
per channel)
Maximum Capacity (LRDIMM) 3TB (24 x 128GB LRDIMM @2400MHz)
Maximum Capacity (RDIMM) 768GB (24 x 32GB LRDIMM @2133MHz)
Maximum Capacity (NVDIMM) 128GB (16 x 8GB NVDIMM)

NOTE: The NVDIMM and 128GB memory will be shipping 2Q-3Q 2016.
NOTE:128GB DIMMs cannot be mixed with any other size DIMMs.
NOTE: NVDIMMs only supported on factory configured servers with E5-2600 v4 processors (not supported on field upgraded E5-2600 v3 servers to E5-2600 v4 processors).
NOTE:NVDIMMs can only be mixed with RDIMMs.

Network Controller

 HP Ethernet 1Gb 4-port 331FLR Adapter
HP Ethernet 1Gb 4-port 366FLR Adapter
HP FlexFabric 10Gb 2-port 533FLR-T Adapter
HP FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter
HP Ethernet 10Gb 2-port 546FLR-SFP+ Adapter
HP FlexFabric 10Gb 2-port 556FLR-SFP+ Adapter
HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter
HP Ethernet 10Gb 2-port 561FLR-T Adapter
HPE FlexFabric 10Gb 2-port 556FLR-T Adapter
HPE Ethernet 10Gb 2-port 562SFP+ Adapter
HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter
HP Ethernet 1Gb 4-port 331FLR Adapter

Maximum Internal
Storage

CAPACITY
CONFIGURATION
Hot Plug SFF SAS SSD
38.4TB 10x3.84TB
Hot Plug SFF SATA SSD 38.4TB 10x3.84TB
Hot Plug LFF SATA SSD 15.36TB 4x3.84TB
Hot Plug LFF SAS SSD 6.4TB 4x1.6TB
Hot Plug SFF SAS 20.0TB 10x2.0TB
Hot Plug SFF SATA
20.0TB 10x2.0TB
Hot Plug LFF SAS 32.0TB  4x8TB
Hot Plug LFF SATA 32.0TB 4x8TB
Hot Plug SFF NVMe PCIe SSD
 12TB NVMe + 8TB SFF 6 NVMe + 4 SAS
