HP ProLiant DL180 Generation 9 (Gen9)

Overview

The new standard for growing data center needs. Delivering an optimized 2U server, designed with the right balance of expandability, performance, reliability, and manageability—all in a new compact chassis. The ideal platform for SMBs and enterprises running applications, which need the right mix of compute and storage.
HPE_ProLiant_DL180_Generation9_(Gen9)

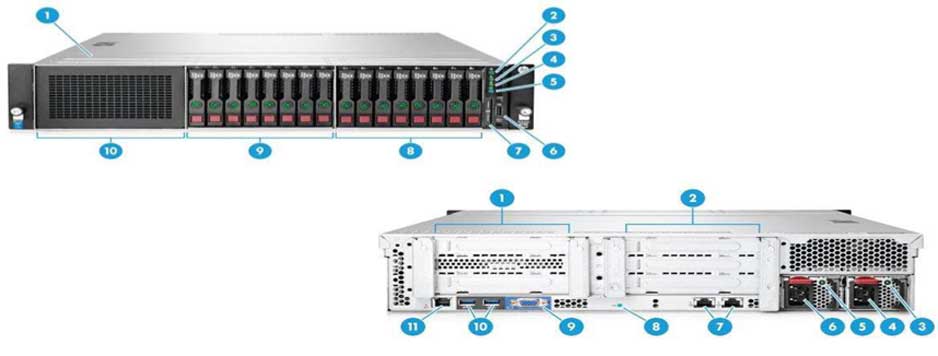

Front View

1. Access Panel ( Top Cover)
2. Power On/Standby button and system power LED
3. Health LED
4. NIC status LED
5. UID button/LED
6. USB 2.0 connector
7. Serial label pull tab
8. Fixed 8-bay SFF drive cage (box 3)
9. 8-bay SFF drive cage bay (box 2, for the second 8-bay SFF drive cage option)
10. HP Media Bay (box 1, for the optical drive cage option)

Rear View

1. PCIe3 slots 1-3 (primary, associated with processor 1)
2. PCIe3 slots 4-6 (secondary, associated with processor 2)
3. Power Supply 2 LED (Optional)
4. Power Supply 2 Power Connector (Optional)
NOTE: RPS shown in the picture.
5. Power Supply 1 LED (Optional)
6. Power Supply 1 Power Connector (Optional)
7. NIC connectors
8. UID LED
9. Video Connector
10. USB 3.0 Connectors
11. Dedicated iLO connector (optional)
HPE_ProLiant_DL180_Generation9_(Gen9)

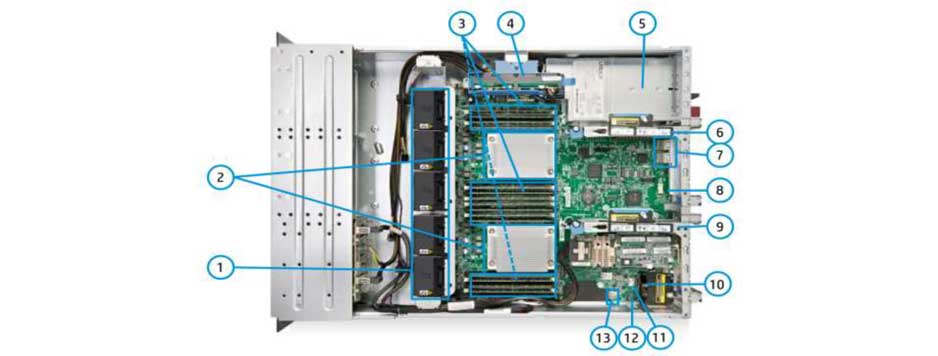

Internal View

1. Fan cage shown with 5 Hot-swap fans (for 2P Redundancy)
2. 2 Processors, heatsink showing, with HP Smart Socket Guide
3. DDR4 DIMM slots. Shown fully populated in 16 slots (8 per processor)
4. Optional HP Smart Storage Battery
5. Entry level power supply bay (1x900W shown)
NOTE: RPS (with one module) shown in the picture above.
6. Connection for second (optional) riser (Required second CPU)
7. Embedded 2x1GbE NIC
8. Flexible LOM sideband signal connector
9. Primary PCIe riser, standard
10. Dedicated iLO module connector
11. MicroSD card slot
12. SATA optical drive connector
13. Internal USB 3.0 connector (for USB flash devices)

Standard Features

Processor

Model CPU frequency Cores L3 Cache Power QPI DDR4 Hz
E5-2660v3
2.6GHz 10
25MB 105W 9.6GT/s 2133
E5-2650v3 2.3GHz 10
25MB 105W 9.6GT/s 2133
E5-2650Lv3  1.8GHz 12
30MB 65W 9.6GT/s 2133
E5-2640v3 2.6GHz 8
20MB 90W 8.0GT/s 1866
E5-2630v3 2.4Ghz 8
20MB 85W 8.0GT/s 1866
E5-2630Lv3 1.8GHz 8 20MB 55W 8.0GT/s 1866
E5-2623v3 3.0GHz 4 10MB 105W 8.0GT/s 1866
E5-2620v3  2.4GHz 6 15MB 85W 8.0GT/s 1866
E5-2609v3  1.9GHz 6 15MB 85W 6.4GT/s 1600
E5-2603v3  1.6GHz 6 15MB 85W 6.4GT/s 1600

Chipset

Intel® C610 Series Chipset
Intel® E5-2600v3 Processor Family

Upgradeability

HP Server UEFI /Legacy ROM
Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured configuration while interacting with your server at boot time. HP ProLiant Gen9 platform defaults to UEFI and can be factory or field configured for Legacy BIOS Boot Mode.
NOTE: The UEFI System Utilities function is analogous to the HP ROM-Based Setup Utility (RBSU) of legacy BIOS.
UEFI enables numerous new capabilities specific to HP ProLiant servers such as:
- Secure Boot
- Operating system specific functionality
- Support for > 2.2 TB (using GPT) boot drives
- USB 3.0 Stack
- Embedded UEFI Shell
- Mass Configuration Deployment Tool using HP RESTful API.
- PXE boot support for IPv6 networks
- Boot support for option cards that only support a UEFI option ROM
NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI.
NOTE: HP Legacy FIO Mode Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory.

On System Management Processor

HP iLO (Firmware HP iLO4 2.0) 2GB NAND

Memory

Type

HP SmartMemory
DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

DIMM Slots Available 16 (8 DIMM slots per processor, 4 channels per processor, 2 DIMMs per channel)
Maximum Capacity (LRDIMM) 512GB (16 x 32GB LRDIMM @2133MHz)
Maximum Capacity (RDIMM) 512GB (16 x 32GB RDIMM @2133MHz)

Network Controller

HP Ethernet 1Gb 2-port i350 Adapter

Maximum Internal
Storage


CAPACITY
CONFIGURATION
Hot Plug SFF SAS
19.2TB 16x1.2TB (with 16SFF drive cage)
Hot Plug SFF SATA 16TB 16x1TB (with 16SFF drive cage)
Hot Plug LFF SAS 72.0TB 12x6TB (with 12LFF drive cage)
Hot Plug LFF SATA 72.0TB 12x6TB (with 12LFF drive cage)
Hot Plug SFF SAS SSD
25.6TB 16x1.6TB (with 16SFF drive cage)
Hot Plug SFF SATA SSD
NOTE: 1.6TB SFF SATA SSD will be supported in early 2015.
25.6TB 16x1.6TB (with 16SFF drive cage)
Hot Plug LFF SATA SSD
NOTE: 1.6TB SFF SATA SSD will be supported in early 2015.
19.2TB 12x1.6TB (with 12LFF drive cage)
Non-Hot Plug LFF SATA  4.8TB 8x600GB (with 8LFF drive cage)
