HP ProLiant ML350 Generation 9 (Gen9)


The ML350 Gen9 is the 2P premium server which delivers a class-leading combination of performance, availability, expandability, manageability, reliability and serviceability making it the choice for remote offices, growing businesses and data centers.

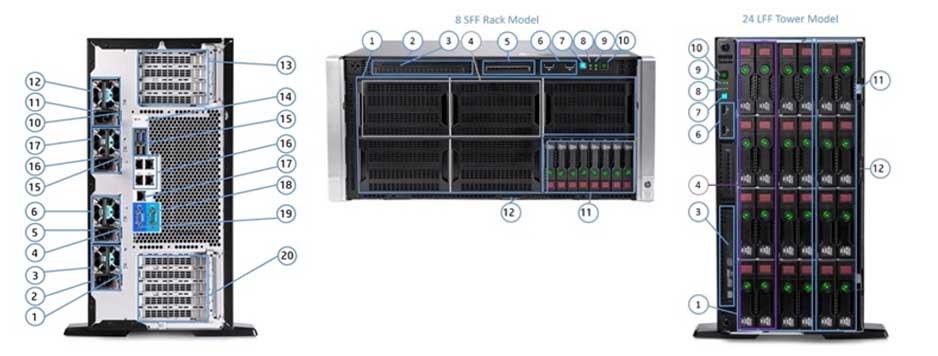

Front view details for Rack (SFF) and Tower (LFF)

1. Optional HDD cage Drive Cage Bays (Rack shown with blanks. Tower shown with 16 LFF Optional drives)
2. Quick removal access panel (shown on Rack)
3. Slim Height Drive Bay for Optional Slim Height SATA DVD-ROM or DVD RW Optical Drive (shown on Tower)
4. Media Drive Cage Bays - (Rack supports two half height or one full height device; Tower supports one half height device)
5. Systems Insight Display Bay for Optional SID (Rack models only)
6. Two (2) USB 2.0 connectors
7. Unit ID LED button
8. Health LED
9. NIC Activity LED
10. Power On /Standby button & system power LED button
11. Eight (8) SFF (Rack)/LFF (Tower) SAS/SATA HDD cage
12. Serial label pull tab

Rear View (Tower Model)

1. Power supply Power LED
2. Power supply Power connection
3. HP Flexible Slot 4 Power Supply (Optional - 500w Power Supply shown)
4. Power supply Power LED
5. Power supply Power connection
6. HP Flexible Slot 3 Power Supply (Optional - 500w Power Supply shown)
7. Power supply Power LED
8. Power supply Power connection
9. HP Flexible Slot 2 Power Supply (Optional - 500w Power Supply shown)
10. Power supply Power LED
11. Power supply Power connection
12. HP Flexible Slot 1 Power Supply (Standard Entry Model - 500w Power Supply shown)
13. PCI Slots (Slots 1-4) Slot 1 and 3 can support Optional GPU
14. Unit ID LED
15. USB 3.0 Connectors (2) top & USB 2.0 Connectors (2) bottom
16. Embedded 4 x 1GbE Network Adapter
17 Dedicated iLO Connector
18. Serial Connector
19. Video Connector
20. PCI Slots (Slots 5-9) (requires Optional second processor)-Slot 6 and 8 can support Optional GPU

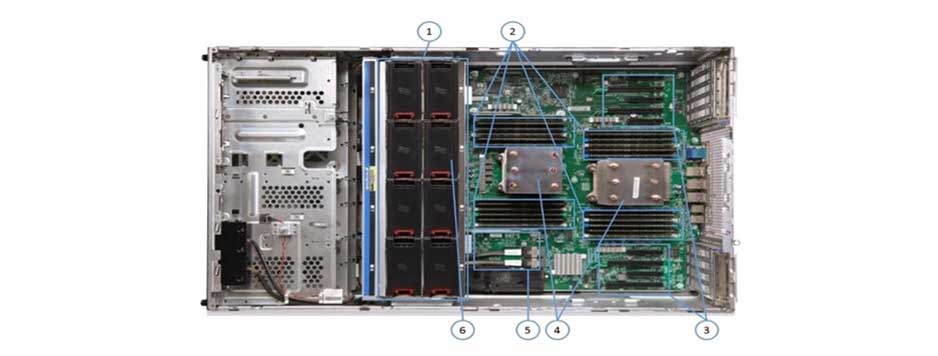

Interior View (Rack Model)
1. System fans: Three (3) fans are standard Optional Five (5) systems fans are shown.
2. Twenty four DIMM slots: DDR4 Registered (RDIMM) or Load Reduced Registered (LRDIMM) memory
3. Nine (9) PCIe expansion slots (8 PCIe Gen3 and 1 PCIe Gen2)
4. Two (2) processors and heatsinks (Second Processor is Optional)
5. Optional HP Flexible Smart Array or Smart HBA (not shown here)
6. Optional HP Smart Storage Battery is under the system fans

Standard Features


Model CPU frequency Cores L3 Cache Power QPI DDR4 Hz
E5-2699v3 2.3GHz 18 45MB 145W 9.6GT/s 2133
E5-2698v3 2.3GHz 16 40MB 135W 9.6GT/s 2133
E5-2697v3 2.6GHz 14 35MB 145W 9.6GT/s 2133
E5-2695v3 2.3GHz 14 35MB 120W 9.6GT/s 2133
E5-2690v3 2.6GHz 12 30MB 135W 9.6GT/s 2133
E5-2683v3 2.0GHz 14 35MB 120W 9.6GT/s 2133
E5-2680v3 2.5GHz 12 30MB 120W 9.6GT/s 2133
E5-2670v3 2.3GHz 12 30MB 120W 9.6GT/s 2133
E5-2667v3 3.2GHz 8 20MB 135W 9.6GT/s 2133
E5-2660v3 2.6GHz 10 25MB 105W 9.6GT/s 2133
E5-2650v3 2.3GHz 10 25MB 105W 9.6GT/s 2133
E5-2650Lv3 1.8GHz 12 30MB 65W 9.6GT/s 2133
E5-2643v3 3.4GHz 6 20MB 135W 9.6GT/s 2133
E5-2640v3 2.6GHz 8 20MB 90W 8.0GT/s 1866
E5-2630v3 2.4GHz 8 20MB 85W 8.0GT/s 1866
E5-2630Lv3 1.8GHz 8 20MB 55W 8.0GT/s 1866
E5-2620v3 2.4GHz 6 15MB 85W 8.0GT/s 1866
E5-2609v3 1.9GHz 6 15MB 85W 6.4GT/s 1600
E5-2603v3 1.6GHz 6 15MB 85W 6.4GT/s 1600


Intel® C610 Series Chipset
Intel® E5-2600v3 Processor Family


Upgradable for two processors (Up to 18 Cores)
NOTE: Total 6, 8, 10, 12, 14, 16, 18 cores.
Up to 24 DIMM slots available for higher Memory capacity
Up to 48 SFF Hard Drive Bays; Or 24 LFF Hard Drive Bays
8 PCIe 3.0 and 1 PCIe 2.0 I/O slots for additional communications and storage expansion
Redundant Power Supply and Redundant Fans
Optional optical drive (up to 1)
Optional System Insight Display
NOTE: Rack model only.

On System Management Processor

HP iLO (Firmware HP iLO4 2.0) 4GB NAND



HP SmartMemory

DDR4 Registered (RDIMM) or Load Reduced (LRDIMM)

DIMM Slots Available 24 (12 DIMM slots per processor, 4 channels per processor, 3 DIMMs per channel)
Maximum Capacity (LRDIMM) 768GB (24 x 16GB RDIMM)
Maximum Capacity (RDIMM) 384GB (24 x 32GB LRDIMM)

Network Controller

 HP Ethernet 1Gb 2-port 330i Adapter

Maximum Internal

Hot Plug LFF SAS 16TB 4 x 4TB
Hot Plug SFF SAS 9.6TB 8x 1.2 TB
Non Hot Plug LFF SAS 2.4TB 4 x 600GB
Hot Plug LFF SATA 16TB 4 x 4TB
Hot Plug SFF SATA 8TB 8 x 1TB
Non Hot Plug LFF SATA 12TB 4 x 3TB
Hot Plug SFF SATA SSD 6.4TB 8 x 800GB
Hot Plug LFF SATA SSD 800GB 4 x 800GB
